Replacement TR8 Parts

Replacement TR8 Parts

For quite a few TR8 parts they are, all but impossible to find now, so replacement TR8 parts have to be used. This page lists the replacement parts I and others have found to work well. That does not mean they are exact replacements and no warranty is inferred or implied that they are right for the job, other then some of us have used them and found them to be effective when the originals can no longer be found. You should satisfy yourself they are right for your car before fitting them! If you have found a replacement for a hard to find part please let us know and we will add it to this page for the benefit of other owners. Rare parts that can still be found may be listed on our parts page HERE

Replacement TR8 Parts for both Carburettor and Efi Models

TR8 CARBURETTOR – AIR FILTER GFE1124 (GFE1060 also used)

K&N AIR FILTER 33-2727

33-2727 is apparently a K&N replacement for WA300 which is a replacement for AAU7342 (Land Rover) which is a replacement for the standard TR8 filter GFE1124.

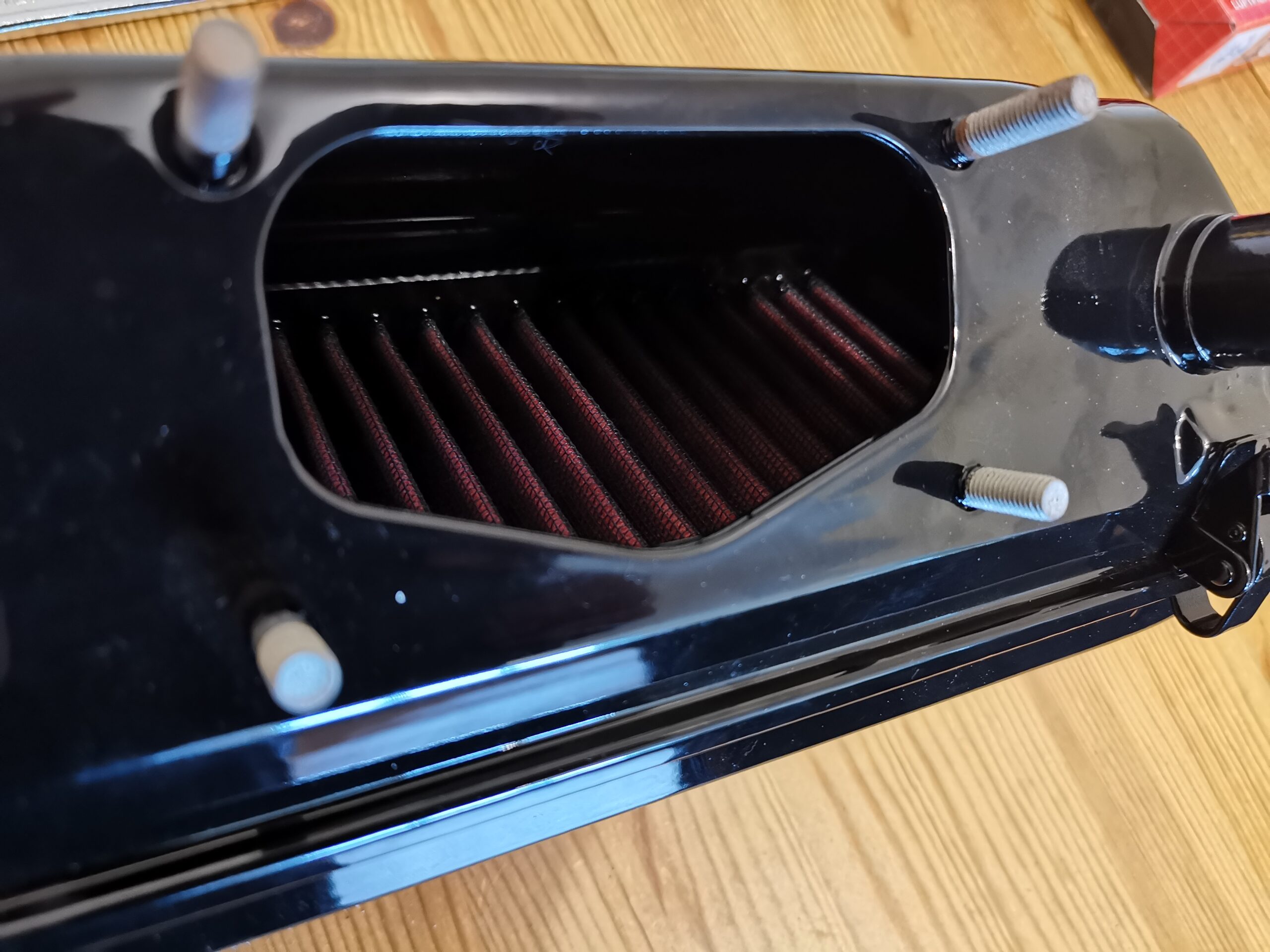

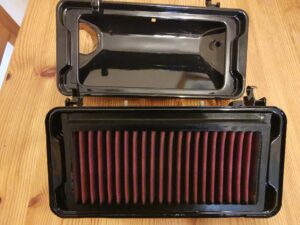

K&N 33-2727 are pretty much a direct replacement less a little squeezing in at the ends by a few mm but once you put the top on it holds it all in place firmly. So this is now my filter of choice.

33-2727

33-2727

33-2727

If you are in the UK you can get them from these guys https://www.knfilters.co.uk/cross…/wesfil/wa300-air-filter

K&N AIR FILTER 33-2094

33-2094 fits very well in the hole in the air box, they aren’t as deep at the edges, so you need some foam blocks or similar and so the other part of the air box will hold them firm when closed. If you don’t they will slide around a bit and may let air past them!

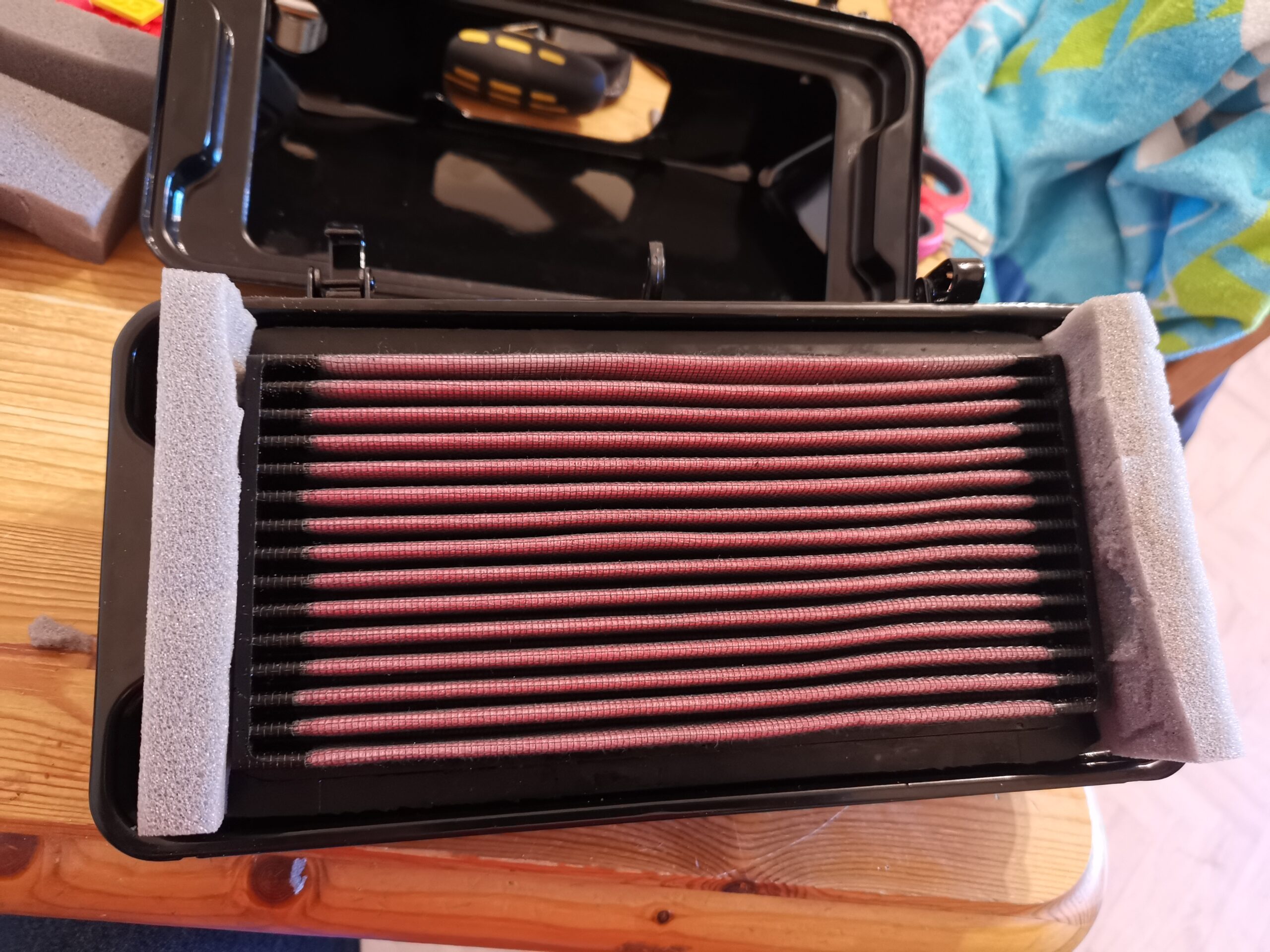

33-2094 K&N with foam blocks to ensure firm fit

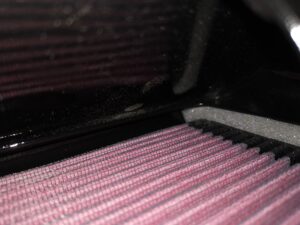

33-2094 K&N fitted in the Air Box

Land Rover Air Filter AAU7342

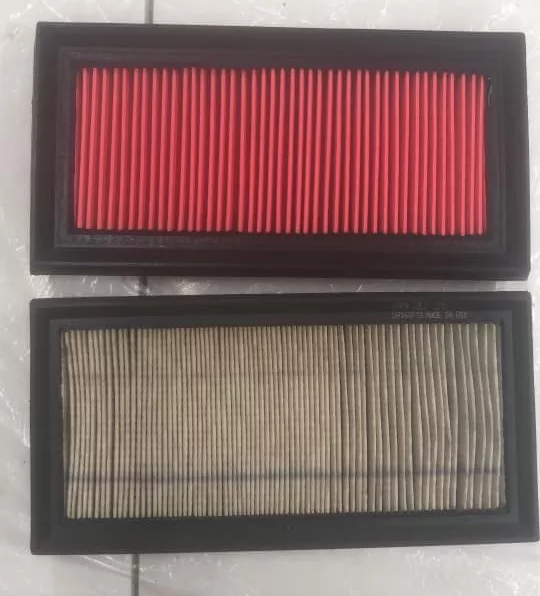

The air filters for the Stromberg fitted TR8’s are still available in stock from Land Rover suppliers. As can be seen in the photo they are exact replacements and are listed by LR stockists as Australian spec Range Rover with carbs. (They are fitted with the same air boxes as the TR8). Part number is WA300 for replacement OR AAU7342 for original which at the time of writing can be found HERE

TR8 Efi – AIR FILTER GFE1093

K&N AIR FILTER 33-2744

While they fit, they are a tight fit so you may wish to shave a bit off the rubber to make them fit better. Personally I find once the top of the air box is secure they are perfectly fine. K&N AIR FILTER 33-2112 is another option but this one is slightly looser. Swings and roundabouts really depending on your preference.

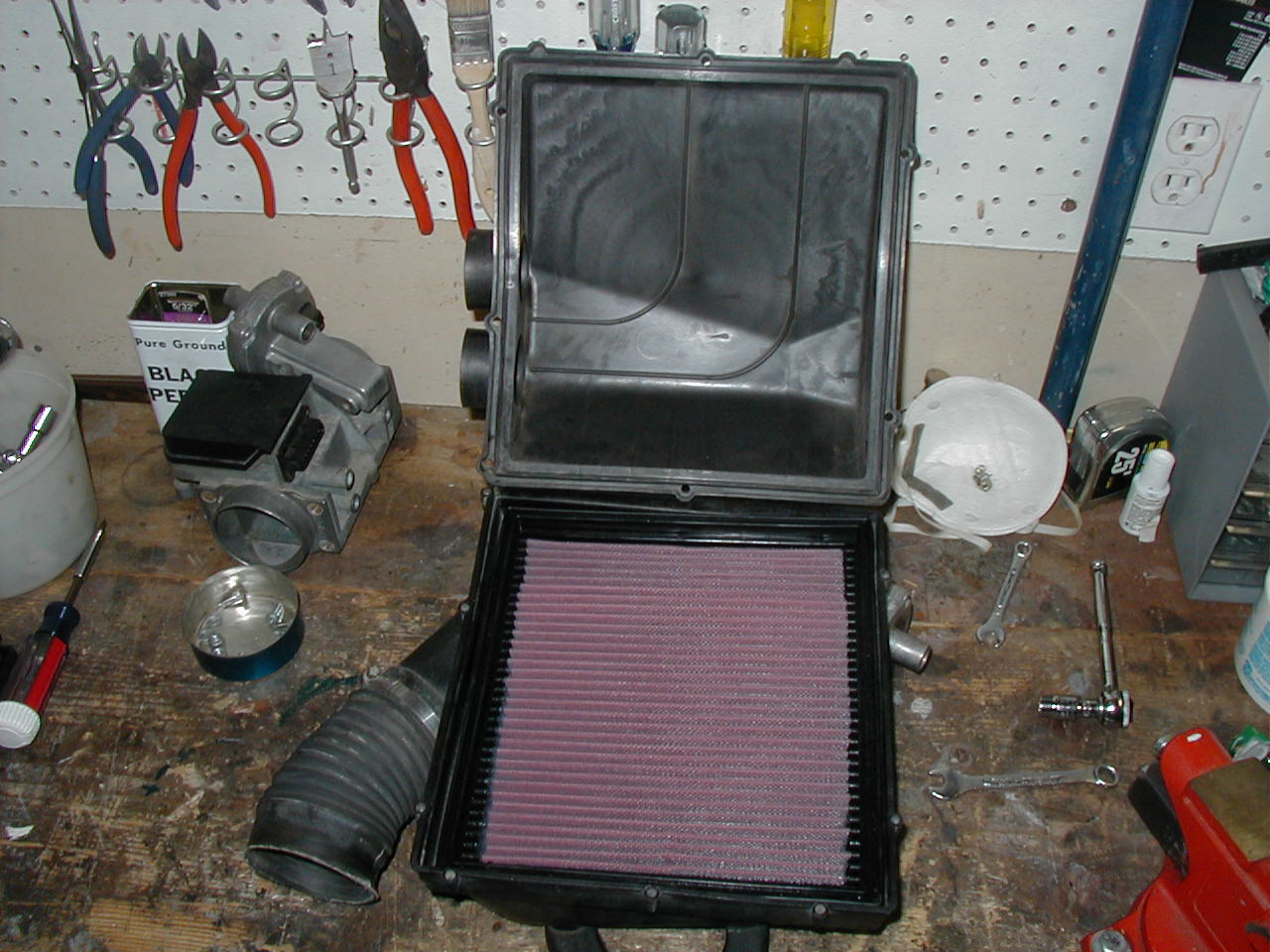

K&N AIR FILTER 33-2744 – while they fit they are a bit tight

TR8 Efi – Injection system and sensors

TR8 Efi inlet and sensors

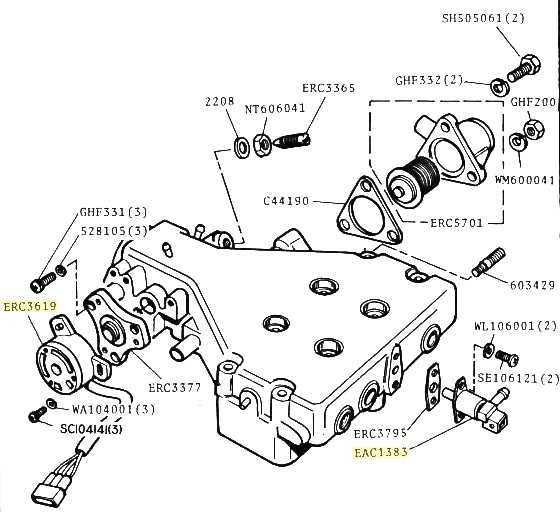

TR8 Efi – Plenum

TR8 Efi Air flow meter and pipes

Replacement TR8 Parts from SCRAPYARDS!

There are various scrapyards around the world where hard to find parts can be found. If you know of a good one with 7/8’s in it then please send a few pictures and contact details and we will add it to the list below.

Mike grove in Shippensburg PA USA – Tel 717 729 0454

When you call, mention my name (Bob Iwan), he does not have a computer or email….has 30-40 wedges , mostly 7’s, some 8;s, on his property, keeps some (the better ones and the ones he’s redoing) inside. Also has a ton of parts, some new old stock from a brit car dealer in buildings, trailers, sheds…also has other brit cars….hopefully this summer i will get down there to take some current pictures and he will get me up to speed on what he has in cars and parts…
